SurroundLite linear downlight pendant — high-efficacy wide-batwing distribution, 300 to 900 lm/ft at 90 CRI, with microgroove spotless or aluminum shielding, in direct and direct/indirect forms and 2–12 ft runs.
| Luminous flux | 300–900 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (cable / stem), Recessed, Surface, Wall, Square forms |
| Dimensions | 5 15⁄32″ W × 2 11⁄16″ H profile; 2–12 ft sections & continuous system runs |
| Distribution | Direct, Direct/Indirect |
| Finishes | Aluminum paint, White, Black, Custom |
| Dimming | Integral 0–10V 1% mini driver standard; PoE drivers optional; UNV/DC (347V consult factory) |
| Rated environments | Dry, Indoor only |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

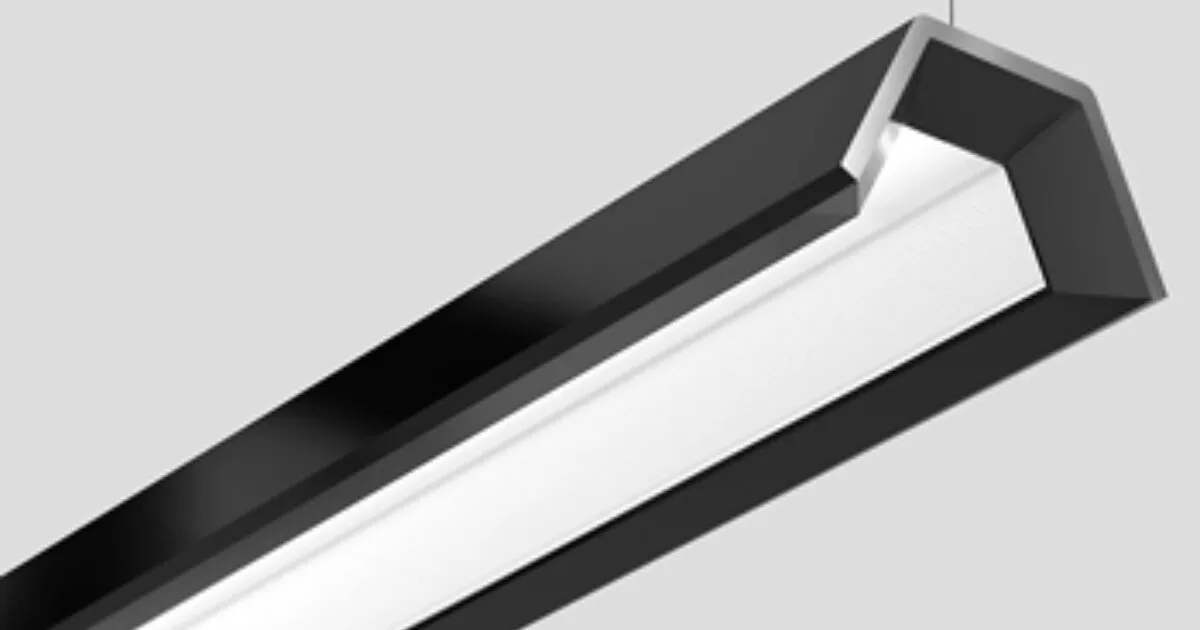

Zen is Axis Lighting's SurroundLite linear downlight, a 5 15⁄32-inch-wide trapezoidal pendant profile whose central SurroundLite lightguide optic produces a high-efficacy, three-dimensional wide-batwing distribution with microgroove side-wall shielding — MSO microgroove spotless lens or MAL microgroove aluminum — for comfortable cutoff along and across the run. Published direct output is 300 to 900 lm/ft (up to 89 lm/W at 3500K), with a direct/indirect variant adding uplight, at 90 CRI across 2700/3000/3500/4000K. Zen is also offered in square forms and in recessed, surface, and wall mountings. An integral 0–10V 1% mini driver is standard with PoE drivers optional at UNV/DC (347V on consultation), configurable from 2 to 12 ft sections into continuous system runs. Zen is cULus listed, dry-location rated for indoor use, and carries a limited 5-year warranty.
Pick from Zen's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
