Acoustic linear pendant integrating SoftZone felt panels with up, down, and edge light — SurroundLite indirect to 1000 lm/ft plus spotless direct and edge, 80/90 CRI, in tall 8–36 inch panels and 2–7 ft runs.
| Luminous flux | 175–1000 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (cable / stem), Forms & patterns |
| Dimensions | 1 15⁄16″ W × 8/12/18/24/36″ tall acoustic panel; 2–7 ft segments (1 ft increments) & continuous system runs |
| Distribution | Direct, Indirect, Direct/Indirect, Edge-lit |
| Finishes | Aluminum paint, White, Black, Custom, SoftZone felt panel colors |
| Dimming | Integral 0–10V 1% mini driver standard; integral DALI-2; 120/277/347/UNV |
| Rated environments | Dry, Indoor only |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

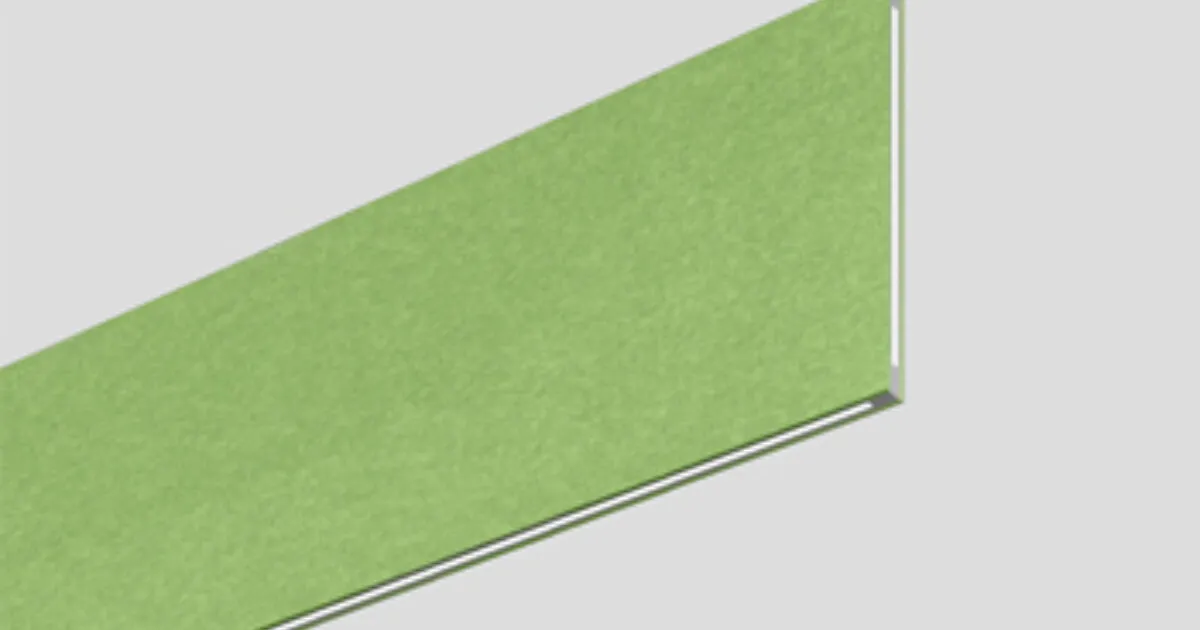

Spatial SoftZone is Axis Lighting's acoustic linear pendant, combining a tall felt SoftZone acoustic panel (8, 12, 18, 24, or 36 inches high) with integrated light that can wash upward (SurroundLite indirect, 175 to 1000 lm/ft), downward (spotless direct, 200 to 400 lm/ft), and out an illuminated edge (200 to 400 lm/ft) in combined distributions. The felt panels absorb sound to calm open interiors and come in an extensive standard and custom color palette, with cleaning-protocol and fire-safety-marker options. Color is 80 or 90 CRI across 2700/3000/3500/4000K. An integral 0–10V 1% mini driver is standard with integral DALI-2 at 120/277/347/UNV. Segments run 2 to 7 ft and join into continuous system runs and patterns; Spatial SoftZone is cULus listed and carries a limited 5-year warranty.
Pick from Spatial SoftZone's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
