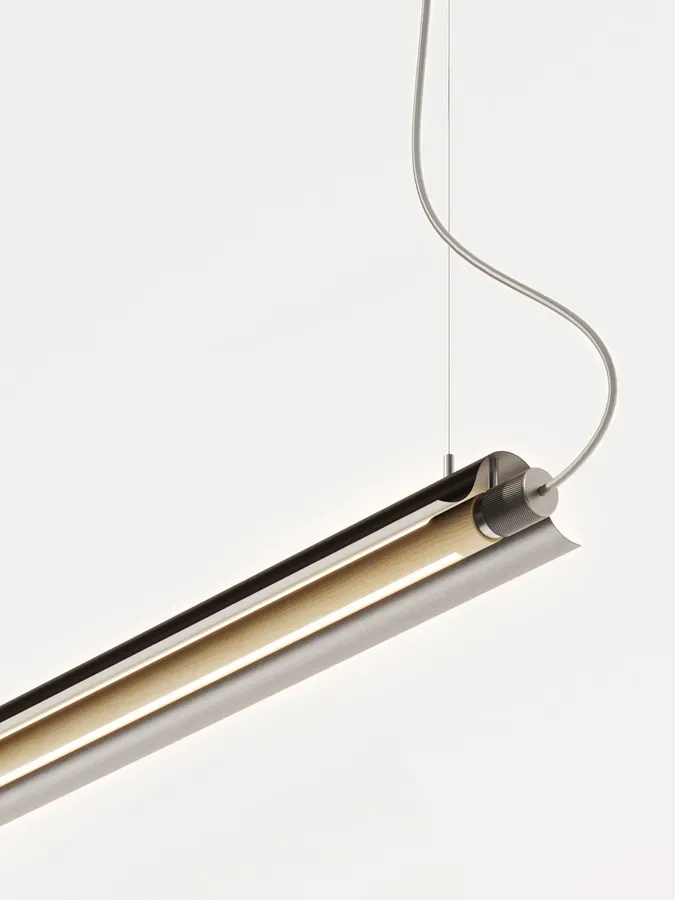

Suspended direct/indirect linear luminaire designed with OG Architects, whose corrugated 9-1/2" metal profile houses a CNC-carved wood core — 4', 6', and 8' lengths delivering 1,058–2,191 lm direct plus 635–1,315 lm indirect on two independently dimmed circuits, all at 90+ CRI.
| Wattage | 19.3–79.6 W |
|---|---|
| Luminous flux | 635–2191 lm |
| Efficacy | 28 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K |
| CRI | ≥90 |
| Mounting | Suspended (Independent Remote), Suspended (Junction Box Remote) |
| Dimensions | 9-1/2" corrugated profile, under 2 lb/ft; fixed 4', 6', and 8' lengths (min 4' / max 8'); 5" × 2" canopy; adjustable suspension to 5' standard |
| Distribution | Direct + Indirect (2-circuit, separately controlled) |
| Finishes | Wood core: Walnut / White Oak / Cherry / Hard Maple / White Ash (FSC certified), Wood finish: Clear Satin / Danish Oil / ECO Coat (Zero VOC) / Painted Satin Black / Satin White / Custom, Hardware: Raw Machined Aluminum / Satin Black / Electroplated Brass / Raw Machined Brass, Reflector interior: Brushed Aluminum / Brushed Brass / Brushed Black |
| Dimming | 0-10V standard; TRIAC/ELV (reduced warranty) or DALI optional |
| Rated environments | Indoor |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
OG 18 ga. is aaline's suspended architectural linear luminaire, created in collaboration with OG Architects, whose gently curved corrugation echoes the wave-like profile of metal cladding. The 9-1/2"-tall extruded profile pairs machined hardware with a CNC-carved wooden core that houses aaline's LED engine, weighing under 2 lb per foot. It ships in three fixed lengths with published output based on 90 CRI, 3000K (±5%): the 4' fixture delivers 1,058 lm direct (19.3 W) and 635 lm indirect (38.6 W), the 6' delivers 1,619 lm direct (29.4 W) and 971 lm indirect (58.8 W), and the 8' delivers 2,191 lm direct (39.8 W) and 1,315 lm indirect (79.6 W). A two-circuit Direct + Indirect distribution lets the down and up components be controlled separately. The remote programmable driver runs on 110–277V AC (50/60 Hz) with 0-10V dimming standard, and TRIAC/ELV (reduced warranty) or DALI available. Colour temperature options are 2700K, 3000K, and 3500K — all 90+ CRI — with a Dim-To-Warm (3000K–1800K) upgrade. The FSC-certified wood core comes in Walnut, White Oak, Cherry, Hard Maple, or White Ash with clear (satin, Danish oil, or zero-VOC ECO Coat) or painted (satin black, white, or custom) finishes; machined hardware is offered in raw aluminum, satin black, electroplated brass, or raw brass, with brushed aluminum, brass, or black reflector interiors. The pictured Light Edition combines a maple core, raw machined aluminum hardware, brushed aluminum reflector, white canopy, and silver cable; the Dark Edition ships a satin-black-painted ash core with black canopy and cable, and a Custom Edition is available. Suspension is on-site adjustable up to a 5' standard drop via independent-remote or junction-box-remote braided low-voltage cable. Hand-made in Toronto, Canada, it carries a 5-year parts warranty with 10-year life-cycle support and a reclamation program (100% biodegradable or recyclable materials, RoHS electronics).
Pick from OG 18 ga.'s published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
