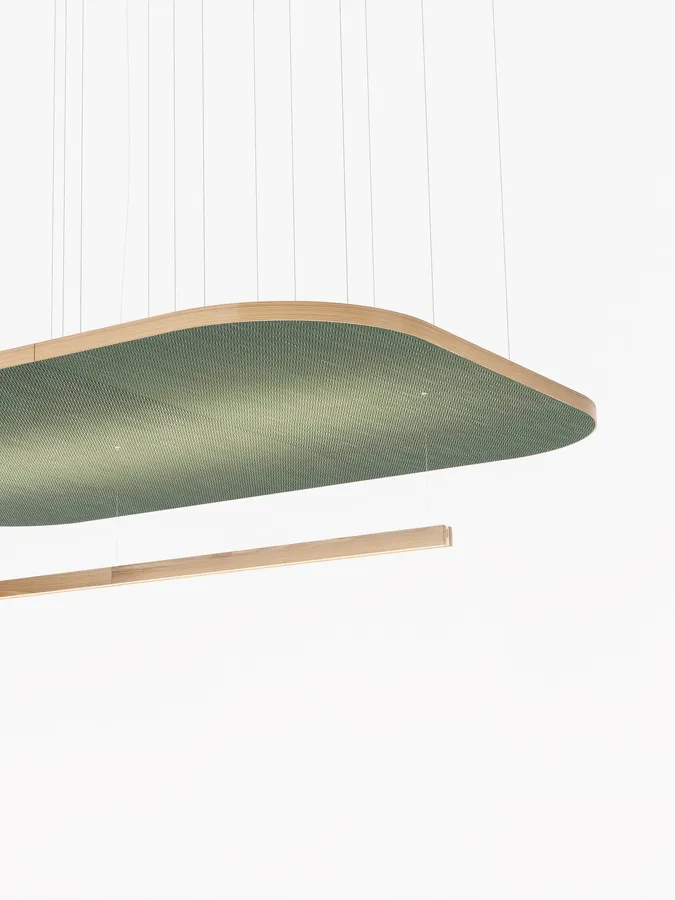

Suspended conference-room acoustic cloud with an integrated LW-EB-CRS-LC linear engine — 650–1514 delivered lumens per foot, 90 CRI, 2700–4000K, and up to NRC 1.0 sound absorption in a flat modular profile.
| Luminous flux | 650–1514 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Suspended — adjustable cable (5' standard, on-site adjustable), Independent or T-Bar support (15/16" t-bar), Power Over Cable add-on |
| Dimensions | Light profile 2-1/2"W × 4-1/4"H; acoustic width in 1' increments (max 8'), length in 2' increments (max module length 4'); light fixture length 2' less than acoustic width |
| Distribution | Direct, Indirect, Direct + Indirect (indirect is 1/3 of lm/ft) |
| Finishes | Walnut (FSC), White Oak (FSC), Cherry (FSC), Hard Maple (FSC), White Ash (FSC), Engineered Wood, Clear coat: Satin / Danish Oil / ECO zero-VOC, Painted: Satin Black / Satin White / custom, FENIX NTM, 100% natural acoustic felt (40+ colours), Maharam textiles |
| Dimming | 0-10V, TRIAC/ELV, DALI, or Lutron EcoSystem (driver integrated above acoustic panels) |
| Rated environments | Dry, Damp location |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
CRS Flat (CRS-FL) is the flat-profile member of aaline's Conference Room System, a Toronto-built assembly that tunes meeting-room light and acoustics together in one suspended cloud. Modular acoustic panels — upholstered in 100% natural acoustic felt or Maharam textiles and backed with sound-absorbent fibre — reach up to NRC 1.0, and integrate the LW-EB-CRS-LC (Linear Embedded, CRS Continuous) light engine behind a PET-film diffuser. The engine publishes delivered output per foot in three direct steps: LO 650 lm/ft (6.2 W/ft), ST 1000 lm/ft (9.5 W/ft), and HI 1514 lm/ft (14.4 W/ft), all at 105 lm/W, with a matching indirect option (726.2 / 1117.2 / 1691.5 lm/ft) for direct, indirect, or direct-plus-indirect distributions (indirect is one-third of the direct lm/ft). Direct optics run Lambertian, Oval (−40°+100°), Wide (−70°+100°), Extra Wide (−110°+100°), and Asymmetric; indirect adds Batwing Wide and Batwing Extra Wide. CCT is offered at 2700K, 3000K, 3500K, and 4000K (dynamic white available) using 90 CRI LED chips, and an Anti-Glare cell upgrade (LW-EB-CRS-LC-AG) drops glare to UGR<16 versus a standard UGR<25 for WELL- and LEED-oriented projects. The system runs on 110–277V AC (50/60 Hz) at roughly 10 W/ft, is suspended on adjustable cable (5' standard, on-site adjustable) with the driver integrated above the acoustic panels, and dims via 0-10V, TRIAC/ELV, DALI, or Lutron EcoSystem. The light bar sits in a 2-1/2"W × 4-1/4"H profile; acoustic modules build to width in 1' increments (max 8') and length in 2' increments (max 4' per module, seams visible), with the light fixture length running 2' less than the acoustic width. Finishes span FSC-certified hardwood veneers (Walnut, White Oak, Cherry, Hard Maple, White Ash, Engineered Wood) with satin, Danish-oil, or zero-VOC clear coats or painted Satin Black / Satin White / custom, plus FENIX NTM faces, 100% natural acoustic felt in 40+ colours, and Maharam textiles. Weighing under 2 kg per foot and rated for dry or damp locations, CRS Flat is ETL/cETL and UL/cUL listed (FSC, RoHS Compliant) with a 5-year warranty and a material reclamation program; final dimensions and material selections are confirmed at shop-drawing stage.
Pick from CRS Flat's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
