Inground performance linear graze/uplight for exterior architecture — IP68 wet-location, IK10 drive-over to 5,000 lbs, with 15 optical distributions and per-foot delivered output from 310 to 1,696 lm/ft.
| Luminous flux | 310–1696 lm/ft |
|---|---|
| Color temperature (CCT) | 2200K / 2700K / 3000K / 3500K / 4000K |
| CRI | ≥82 |
| IP rating | IP68 |
| Mounting | In-grade (concrete pour box, ordered separately per fixture) |
| Dimensions | Nominal lengths 12", 24", 36", 48"; housing 4.88" W x 9.88" H |
| Distribution | Direct (uplight), Asymmetric deep graze |
| Finishes | Satin anodized |
| Dimming | 0-10V (1%) or DMX; non-dimming option |
| Rated environments | Wet location (ETL / cETL), -20 °C to 50 °C, IK10 walk/drive-over up to 5,000 lbs in concrete pour, Not suitable for permanent submersion |
| Rated lifetime | 75,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

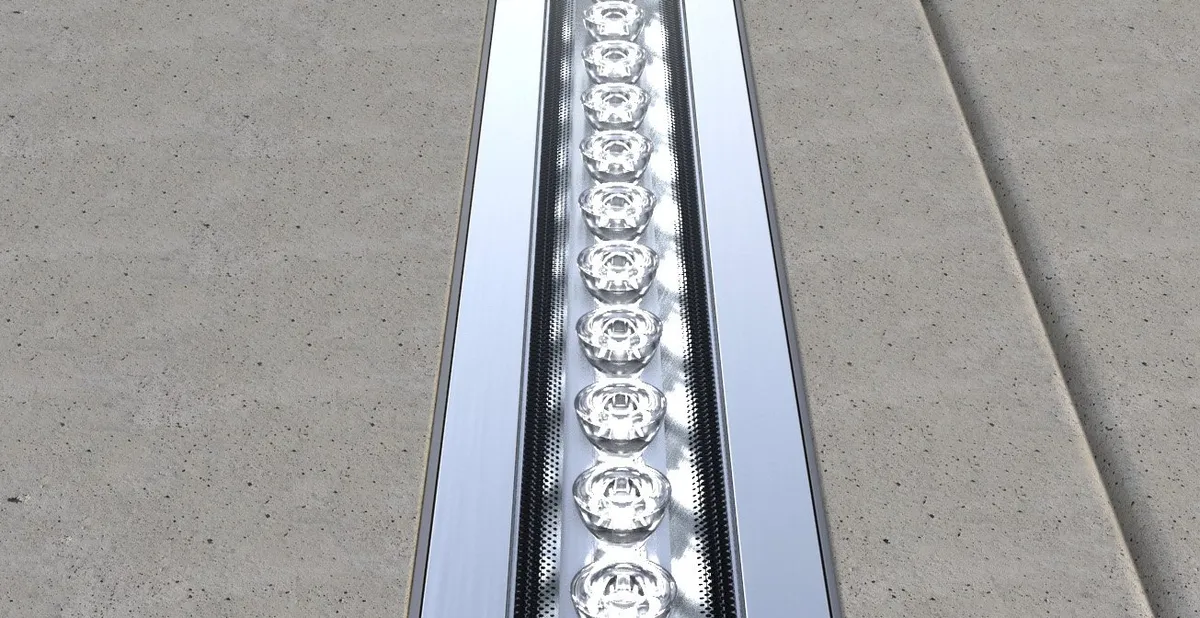

The Medley Ingrade is Insight Lighting's inground performance linear luminaire for exterior facade grazing and architectural uplighting, installed flush in a concrete-pour box and specified by the foot. A precision-extruded aluminum housing with an 8 mm clear tempered-glass lens and satin anodized finish is rated ETL and cETL for wet locations, IP68 (not for permanent submersion), and IK10 walk/drive-over compliant up to 5,000 lbs in a concrete pour. Three per-foot output tiers — Low (3.5 W/ft), Medium (9.0 W/ft), and High (15.0 W/ft) — pair with fifteen optical distributions spanning tight 7°X60° and 10°X10° through wide 100°X100° plus an Asymmetric Deep Graze for 10-12 ft wall heights, reaching up to 117,530 peak candela. Delivered output runs 310 to 1,696 lumens per foot depending on optic and drive current. White-light CCTs of 2200K, 2700K, 3000K, 3500K, and 4000K are offered at 82+ CRI (optional 90+ CRI), alongside static Red, Green, Blue, and Amber. Nominal fixture lengths are 12", 24", 36", and 48", available as standalone fixtures or in plug-and-play continuous runs. An integrated power supply runs 120VAC or 277VAC with 0-10V (1%) or DMX dimming (plus a non-dimming option), rated L70 at 75,000 hours and backed by a 5-year limited warranty.
Pick from Medley Ingrade (MIG)'s published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
