Modular high-ceiling luminaire scaling from 3 to 9 modules for 16,600–60,300 delivered lumens, with 25°/40°/60° optics and 60° rotation / 180° tilt aiming.
| Wattage | 200–600 W |
|---|---|
| Luminous flux | 16600–60300 lm |
| Efficacy | 101 lm/W |
| Color temperature (CCT) | 3000K / 4000K / 5000K |
| CRI | ≥85 |
| Beam angle | 25° / 40° / 60° |
| Mounting | Bracket Mount |
| Dimensions | Module 17.1" × 5.7"; 3/6/9-module builds (200W/400W/600W) |
| Distribution | Direct (25°/40°/60° optics) |
| Finishes | Black |
| Dimming | 0–10V to 10% / Superior 0–10V to 1% / DMX to 0.1% (VX Driver) |
| Rated environments | ETL Damp location, -40 °F to 104 °F, 4KV built-in surge protection, Natatorium-rated, Static White Outdoor configuration available |
| Rated lifetime | 100,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

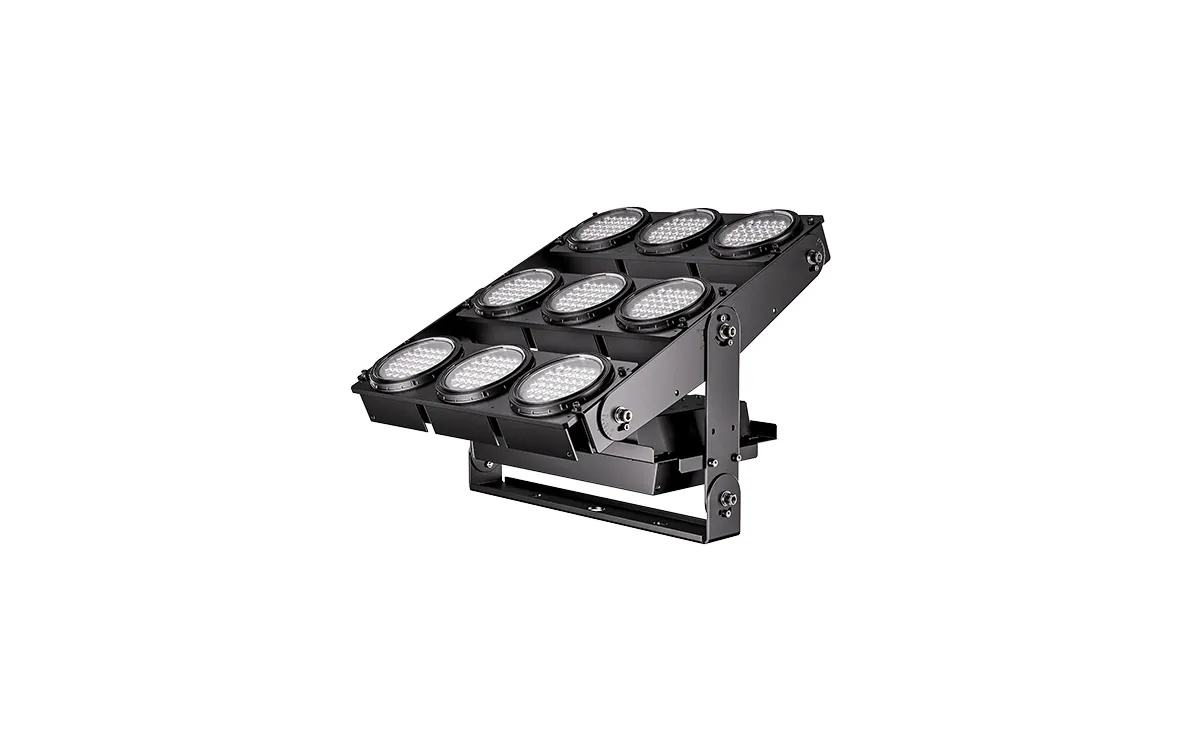

Tetriss 2.0 is Meteor Lighting's modular high-ceiling luminaire, built from 3-, 6-, and 9-module blocks (200W / 400W / 600W) that deliver 16,600 to 60,300 lm from a high-pressure die-cast aluminum and tempered-glass housing with a precision-molded high-transmittance clear PC lens. Each configuration offers 25°, 40°, and 60° beam optics plus 60° rotation and 180° tilt for precise aiming, making it suited to demanding indoor, outdoor, and natatorium high-ceiling spaces. Meteor's proprietary VX Driver provides video flicker-free dimming across Standard 0–10V (to 10%), Superior 0–10V (to 1%), and single-channel DMX (to 0.1%, ANSI E1.20 RDM), with 4KV built-in surge protection and an optional Philips Bodine emergency pack. CCT options are 3000K and 4000K at CRI 85 and 5000K at CRI 75; rated L70 at 100,000 hours (TM-21), ETL Damp Location listed and CE marked, with a separate Static White Outdoor configuration and RGBW modules available.
Pick from Tetriss 2.0's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
